Clipping Switcher

Simple utility board to swap between up to 6 different sets of clipping diodes.

Designedwith multiple configurations, including back to back pairs, twin back to back pairs (2 x 2), asymetrical (1 + 2), LEDs and FETs. All the diode spots are big enough to take D07 packages, so you can have as much germanium mojo on there as you like.

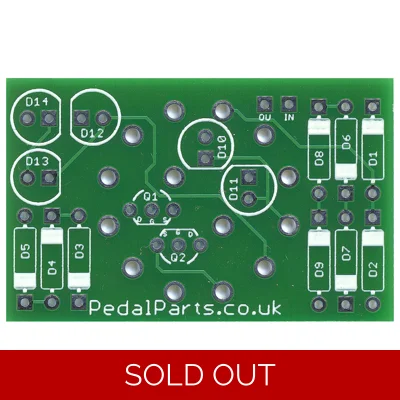

No need to follow the prescribed layout - on the image you can see the asymetrical LED pads have been used for a symetrical pair with a jumper in place of the third, and a set of LED pads has been used for a pair of upright germaniums. The world is your fuzzy oyster.

Pads positioned for Alpha-type 2P6T rotary switch.

PCB size: 47 x 29mm

Download the INSTRUCTION PDF
