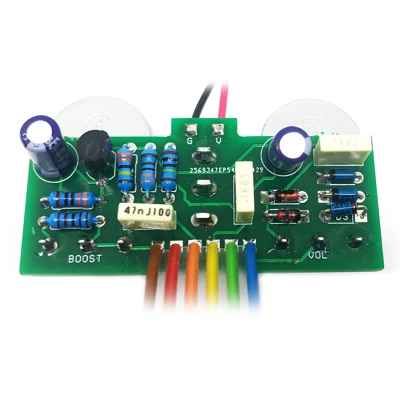

L'il Louie Dual 1590B

NOTE: Does not come with ribbon cable.

Based on a large golden box of beautiful tone, this little fella will give you the same range of Fender tones in a much more board-friendly form.

Add a little 50's Fender Twin or Tweed Deluxe oomph into your chain. Second footswtich kicks in the gain boost which adds even more punch. Drive that amp!

We also do this in a horizontal format, the larger 1590BB as per the original, or even a 1590B single footswitch version without the boost. Check the links at the bottom.

Footswitches and LEDs mount on a separate daughterboard

If you want the PCBs without parts there's a link for that at the bottom of the page.

Partial kit: PCBs, all board-mounted components (not footswitches), pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Les Lius

Difficulty: Medium

PCB size: 50 x 25mm / 50 x 25mm

Knobs required: 2

Enclosure: 1590B

Download the INSTRUCTION PDF
