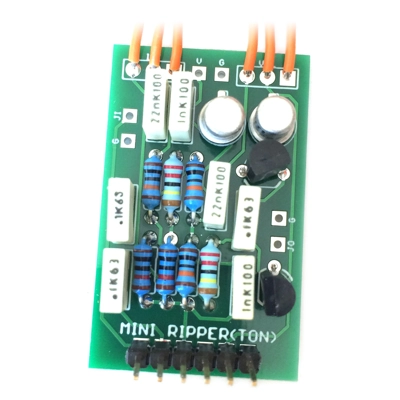

FuzzPup Cone Ripper

This is part of our FuzzPup range of circuits designed for 1590A builds. Please read the general build doc available here and ensure you're happy with what's involved. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

A different PCB is available for 'standard' 1590B builds - see the related products listed below.

Noisy, uncompromising, signal-tearing gain.

The Cone Ripper kit comes with parts to make a few different variations, all of which will have you running for cover.

• Cone Ripper - broken overdrive that sounds like you've got a ripped speaker in your cab.
• Butt Flush Fuzz - Stupidly high gain fuzz fun - heavy as you like.
• American Octave - tight, gated fuzz.
• No Way Drive - Crazy high-gain fuzz with pronounced octave-up.

All of the above sound different enough to warrant having one of each on your board. Honestly!

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Supplied with 9mm pots (round shaft)

Inspired by: Torn's Peaker / Aenima / US / Never Drive

Difficulty: Hard

PCB size: 25 x 40mm

Knobs required: 2

Enclosure: 1590A

Direct-Connect compatible (6-way)

Download the INSTRUCTION PDF

Please also read this general guide to FuzzPup builds.

Note: image with circuit board in the enclosure is to illustrate the way this kit connects.
