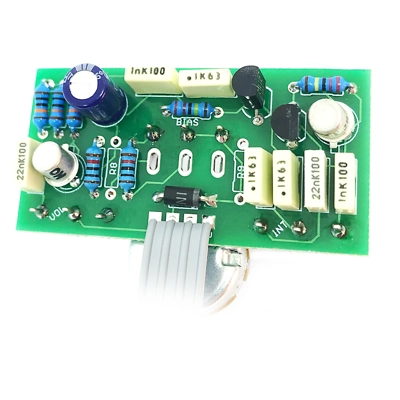

Cone Ripper - Filthy OD/Fuzz

Noisy, uncompromising, signal-tearing gain.

The Cone Ripper kit comes with parts to make a few different variations, all of which will have you running for cover.

• Cone Ripper - broken overdrive that sounds like you've got a ripped speaker in your cab.
• Butt Flush Fuzz - Stupidly high gain fuzz fun - heavy as you like.
• American Octave - tight, gated fuzz.
• No Way Drive - Crazy high-gain fuzz with pronounced octave-up.

All of the above sound different enough to warrant having one of each on your board, but you can mess around with the build and get a few different configurations going by adding a toggle switch or a pot. You won't be able to switch into the American Octave or No Way Drive, as these require parts taken out or orientation of transistors flipped, but altering the bias of the first gain stage transistor makes a huge difference to the sound. Check the build document for more details.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and can take a battery if desired with footswitch positioned 22mm higher, closer to the controls. Knobs are not included.

Inspired by: Torn's Peaker / US / Never Drive / Aenima

Difficulty: Easy

PCB size: 50 x 30mm

Knobs required: 2 (or 3)

Enclosure: 1590B

Direct Connect compatible (4-way)

Download INSTRUCTION PDF
