Broon Sauce

Sought after box of 'brown sound' right here. We almost gave up on this one due to the multiple different (inaccurate) schematics out there, but AionFX nailed the correct connections and here we are...

We won't go into detail - you know what it is. Go nuts and pair it up with the Stinky Cheese to make a Cheese Source (sorry, you'll have to sort your own enclosure for that right now).

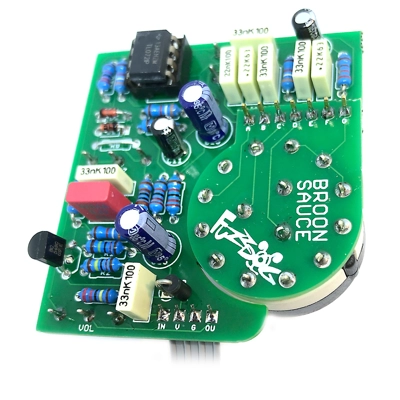

Includes a daughterboard for the rotary switch to make assembly a doddle.

And all this in a vertical 1590B you say? Damn straight.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs. The rotary switch may need to be cut to length.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired: Lovetone Brown Source

Difficulty: Medium

PCB size: 50 x 54mm / 32 x 27mm

Knobs required: 4

Enclosure: 1590B

Direct-Connect compatible (4-way)

Download the INSTRUCTION PDF
