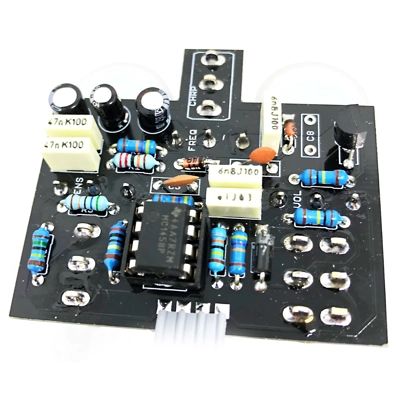

Rattle Crow / Dirty Bird

This is a mad one. The Last Gasp Laboratories Rattle Crow is a 'resistive filter', which is sort of an autowah type affair, with the filter kicking in the harder the signal is thrown at it. With some fuzz too.

BUT... this kit can also give you the all-singing, all-dancing Dirty Bird, Moosapotamus' tweaked and tricked out version.

In standard form you get control over Vol, Sensitivity and Frequency (Q). Move up to the Dirty Bird and you'll get three switches to mess around with freqency range and to add general craziness to the effect. The full Moos version had another switch for Bright, but to be honest we prefered to keep the layout more useable than add another switch. We've included extra pads so you can add that switch offboard if you *really* want to.

For more on what this actually does, try the sound clips at the link above, or check out videos of the Rattle Crow. It's not an easy one to describe.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Inspired by: Rattle Crow / Dirty Bird

Difficulty: Medium

PCB size: 45 x 50mm

Knobs required: 3

Enclosure: 1590B

Direct-connect compatible (4 way)

Download the INSTRUCTION PDF
