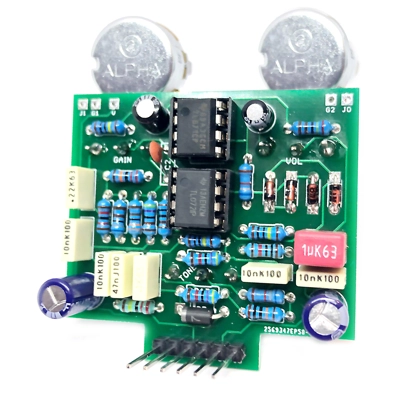

Protean Blue

This is one half of a rather nice dual blues/Nashville pedal. We've designed the PCBs so you can build the two sides of that pedal as stand alone single units, or easily combine them in a bigger box. See links below for the sister circuit and the combo kit.

This is the BLUE channel of that lovely box of tones.

Essentially a Blues Breaker with some small tweaks, including more output - a worthy modification.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Protein / Blues Breaker

Difficulty: Medium

PCB size: 50 x 46mm

Knobs required: 3

Enclosure: 1590B

Direct-Connect compatible (4-way)

Download the INSTRUCTION PDF
