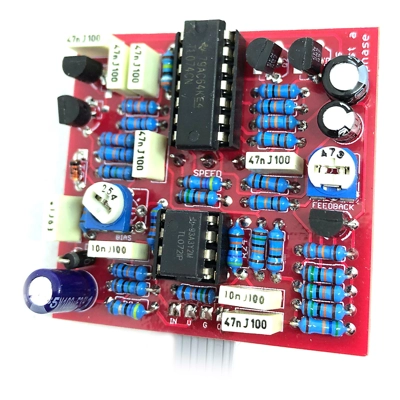

Phase 90

Want phase? We got phase. 90 degrees of it.

We've kept it simple in this new version of the PCB. We like it that way.

The option to have a trimmer for adjustable feedback is still there - a nice set-and-forget feature. Other than that it's just a case of setting the bias voltage and off you go.

Matched FETs are optional, as we had lots of requests to supply the kit without them in the past. The PCB is designed for DSG pinout FETs, such as 2N5457, so you'll have to check yours if using something else. If the product options aren't showing any matched sets available, that's the case. They take time to sort. Whether you get them from us or not, you NEED FETS for this circuit to work.

The kit is supplied with a vertical-mount pot which has a round shaft, so you'll need set-screw fitting knob.


Partial kit: PCB, all board-mounted components (not footswitch), pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with partial kits, and will not take a battery. Knobs are not included.


Inspired by: Phase 90

Difficulty: Medium-hard

PCB size: 50 x 50mm

Knobs required: 1

Enclosure: 1590B
