Please see the kit page for full description.
Direct Connect compatible (4 or 6 way)

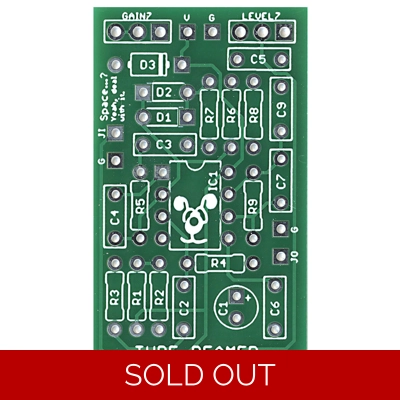

Inspired by: Tube Sceramer
PCB size: 25 x 45mm
FPpcb_TReam
Pedal Parts
New
Great PCB!
"Got a couple of these to experiment with. And I must say, it is an excellent circuit! I did a few mods. I installed a matched pair of "Mustard" style film caps. And I made one of the diodes where you can switch it with a Germanium diode. And as always, I installed a socket for the IC. Always nice to be able to swap in something different if one wants. Overall I wouldn't hesitate to recommend this PCB! Trey Allensworth The Outback Tone Shack Perkins Oklahoma" The Outback Tone Shack, Trey Allensworth - 10 October 2022
Amazing pcbs from the dogg as always
"I always iy just the pcbs now as I mass buy parts and this has been one of my favourite sounding builds. I changed a couple of values mainly regarding the 2nd OP amp stage. R6 instead of 51k I added wires to an on/on DBDT toggle with either 56k or a jumper (0ohm) and it really adds and extra beast control, if you enjoy the pain of making and already tight squeeze in a 1590a build more painful and can do your own drilling. I also changed c6 from 22nf to 15nf and now with a flick of a switch I get it either singing or screaming, just the control I like. For anyone interested in DIY pedal building. Fuzz dogs pcbs are the absolute best around IMHO" Hex Fairydance - 05 August 2019
Don't forget to download the
General Build Guide
PRE-BUILT KITS:
We're only building for UK customers right now. Please don't order from elsewhere as we'll simply have to refund you.
PLEASE NOTE:
Full kits DO NOT include enclosures unless you select them in the 'Kit Type' drop-down menu.
