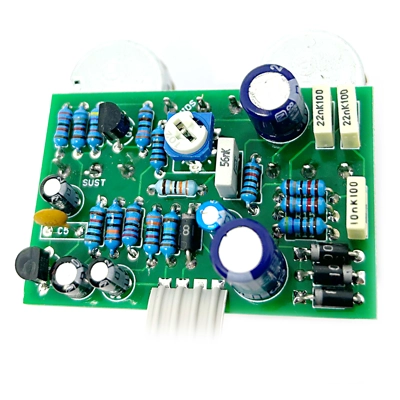

Lonely Vox Club Fuzz

Buzz box based on the onboard fuzz from Vox UL730 and 7120 amps. Why should you care about that? Some pretty iconic tones from Revolver and Sgt. Pepper's maybe...

Pretty simple build that'll give you a nice range of fuzz, from fairly gently to full-on splat at the top end of the gain. Mids filter to tweak those tones, and an internal trimmer to get your perfect balance of fuzz vs gating. What's not to love (love, love)? Whoops, wrong album. Still, you've got to get it into your life.

Supplied with board-mounted pots with round shafts, so you'll need set-screw fitting knobs).

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is only available with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Lonely Heart Fuzz

Difficulty: Medium

PCB size: 50 x 33mm

Knobs required: 3

Enclosure: 1590B

Direct Connect compatible (4 way)

Download the INSTRUCTION PDF
