Karryn
Now discontinued Japanese boutique take on emulating a cranked 70s era Marshall.
We're wondering why production was stopped, as it does a fine job in its endeavours.
The original is a three-knob unit, with an internal trimmer for a 'Weight' control. We've added an extra pot space so you can have this external, but honestly - it's likely you'll set-and-forget, so stick with Tone, Vol and Gain is our shout.
The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.
If you want the PCB without parts there's a link for that at the bottom of the page.

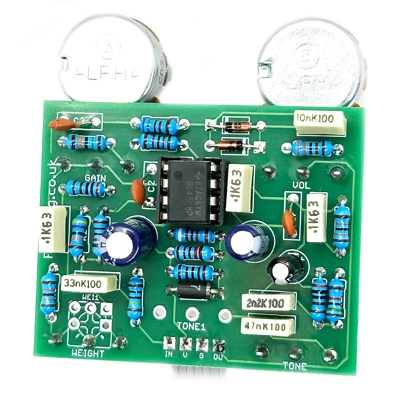

Partial kit: PCB, all board-mounted components, pots.
Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.
Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.
Builds are only available with full kits including enclosures. Please choose appropriate knobs.
Inspired by: Vemuran Karen
Difficulty: Medium
PCB size: 50 x 40mm
Knobs required: 3/4
Enclosure: 1590B
Direct Connect compatible (4-way)
Download the INSTRUCTION PDF
