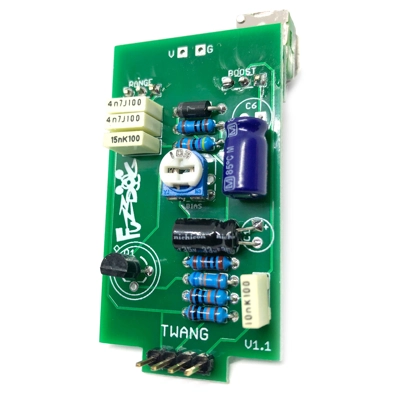

FuzzPup Texas Treble

This is part of our FuzzPup range of circuits designed for 1590A builds. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

A different PCB is available for 'standard' 1590B builds - see the related products listed below.

Sought-after treble boost from not too far back in the day. It's essentially a Range Master with three-way range selection, but that's no bad thing.

You can go mojo with a germanium can, but honestly - it sounds good with a plain and simple silicon BJT.

The input caps on the original, and indeed the current 'boutique' version, go from treble, a bit more from the mids, to full range. At FDHQ we plain don't like the full range mode, so we'll include caps to keep that bottom end at bay if you choose. It's the way forward...

Note: Image of complete boxed pedal is not this one, it's just to illustrate how the FuzzPups go together.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and daughterboard, jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Supplied with 9mm pots (round shaft)

Inspired by: Diaz Texas Ranger

Difficulty: Hard

PCB size: 30 x 55mm

Knobs required: 1

Enclosure: 1590A
