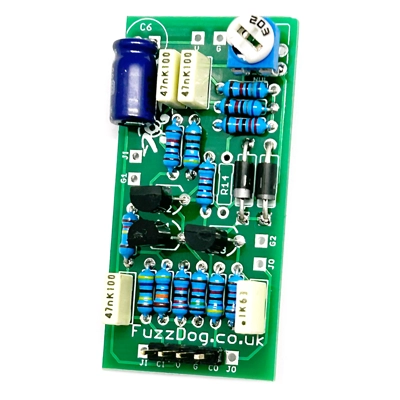

FuzzPup Stinger

This is part of our FuzzPup range of circuits designed for 1590A builds. Please read the general build doc available here and ensure you're happy with what's involved. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

PCB and kit also available as a standard build for 1590B - see related products below.

Our version of the Dan Armstrong Green Ringer, an octave-up circuit which can be used to great effect when combined with fuzz.

We've included spots for a trimmer or pot for the variable 'nulling' mod. What's that? Read up here.

Supplied with silicon 1N4148 diodes as standard, but you can add optional matched germanium diodes (Russian D9K) if you want to.

In stock form this pedal has no external controls other than the bypass switch.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

1590A Enclosure (pre-drilled) is only available with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosure. Please choose appropriate knobs.

Supplied with 16mm pot (knurled shaft)

Inspired by: Green Ringer / EQD Tentacle

Difficulty: Hard

PCB size: 25 x 45mm

Knobs required: 1

Enclosure: 1590A

Direct-Connect compatible (6-way)

If you want the kit pre-built you must add the enclosure option below and select your knobs in the Components section. Check Enclosures section for powder-coated enclosure availability.

Download the INSTRUCTION PDF

Please also read this general guide to FuzzPup builds.
