FuzzPup Wee Beaver

This is part of our FuzzPup range of circuits designed for 1590A builds. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

A different PCB is available for 'standard' 1590B builds - see the related products listed below.

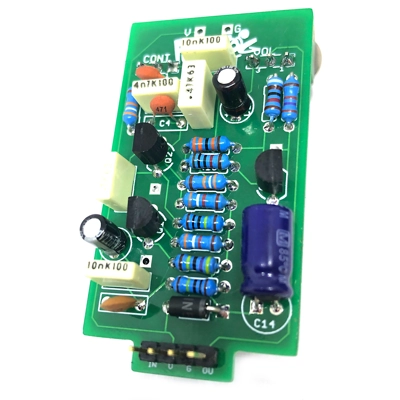

Pics other than the main image are illustrative of FuzzPup builds, not this actual kit.

This is a great fuzz from El Musico Loco which is no more (RIP).

Loosely based around the Regulus VIII Os Mutantes fuzz. This does away with the fuzz control, with it maxed out all the time, so all you have to play with other than volume is the Contour pot. Believe me, that's enough. It's glorious. Based on the Big Muff Pi tone control, but this goes beyond. Fat and bluesy fuzz fug, screaming top end fizz, nasal midrange roar. It's all there.

Comes with a separate daughterboard to easily mount the pots to the main PCB.

Pots have round shafts so you'll need set-screw fitting knobs. Pot spacing is 18mm.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and daughterboard, jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Supplied with 9mm pots (round shaft)

Inspired by: Wee Beaver

Difficulty: Hard

PCB size: 30 x 55mm

Knobs required: 2
