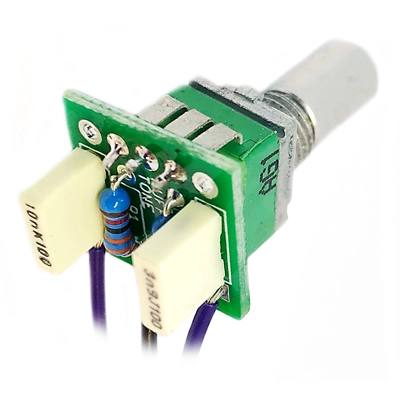

Big Muff Pi Tone Stack Mini

Now you can add some lovely Big Muff Pi tone action to your favourite circuits.

This drop-in tone stack can be added to pretty much anything you want. Simply locate the best place to add it (it'll differ from circuit to circuit), wire it in and off you go.

This teeny version is entirely passive, so you'll get a volume drop. Use it in places where there's some gain recovery following this circuit.

If you need something similar with gain recovery built in or some control over the mids check the other version we do linked at the bottom of this page.

Available with a choice of pots. 9mm will give you the smallest possible footprint. It'll also work with horizontal or vertical pin 16mm pots. In practice they'll all feel exactly the same, and all have round shafts.

Kit includes: PCB, all PCB mounted components, hook-up wire.

Difficulty: Easy

PCB size: 15 x 15mm

Knobs required: 1

Download INSTRUCTION PDF
