Baa Baa Noir

Boutique box based on the Roland Bee Baa Fuzz.

All the same ultra-splattery goodness of the original with four different input caps on a rotary switch, so you can be the master of the bass frequencies being sent forth.

It has a spot on Matt Pike's pedalboard, so if you're into that kind of thing, what's not to love?

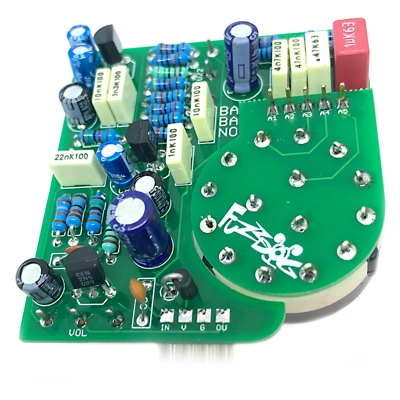

Includes a daughterboard for the rotary switch to make assembly a doddle.

And all this in a vertical 1590B you say? Damn straight.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs. The rotary switch may need to be cut to length.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired: Black Sheep

Difficulty: Medium

PCB size: 50 x 54mm / 32 x 27mm

Knobs required: 4

Enclosure: 1590B

Direct-Connect compatible (4-way)

Download the INSTRUCTION PDF
