1590B Drill Template

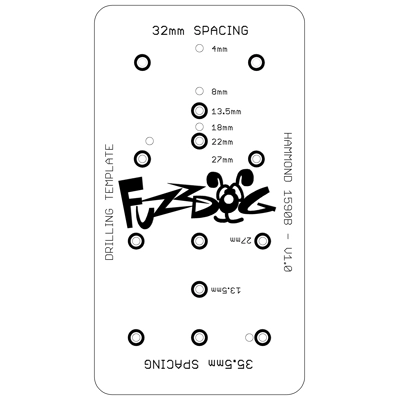

Drilling templates for most of our vertical format 1590B circuits.

One side has pot and switch positions for both of our standard spacings - 32mm and 35.5mm. The other has guides for footswitch, LED, jacks and DC socket for both battery and non-battery configurations.

Recommended for marking up the enclosure only, not for actually drilling through. The holes won't stay neat and sharp for long if you're hitting them with a pilot drill.

Not sure this requires a document as it's all pretty self-explanatory.

PCB size: 59 x 109mm

PCB-1590BTemp

Pedal Parts

New

£6.00 inc. tax
£5.00 ex. tax
? Tax based on United Kingdom.
