Tails/True Bypass - add-on for PT2399 delays

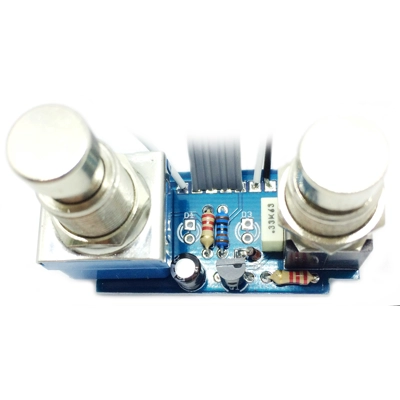

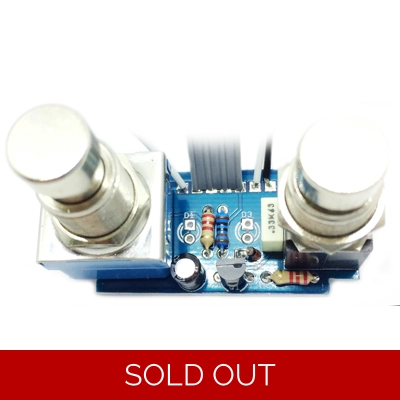

This neat little circuit replaces a decoupling capacitor on many PT2399-based delays to enable a Tails function, meaning your repeats are still heard after bypass without your current signal being delayed.

This has been available for some time as a tiny additional PCB, but implementing it could be a bit tricky if you also wanted the option of true bypass underfoot. Not any more!

This twin footswitch setup is simple to implement, with a footprint designed to fit the width of a 1590B.

Note: footswitches need to be purchased separately. One each of 3PDT and DPDT latching. These are normally different heights. Deal with it.

Kit includes: PCB, all components except footswitches.

Difficulty: Easy

PCB size: 50 x 25mm

Download the INSTRUCTION PDF
