TAILS - add-on for PT2399 delays

This neat little circuit replaces a decoupling capacitor on many PT2399-based delays to enable a Tails function, meaning your repeats are still heard after bypass without your current signal being delayed.

Very simple to implement, and a tiny footprint meaning you should be able to fit it in to most any build.

Be aware that you lose True Bypass by doing this, but you could always add a second switch to get around that.

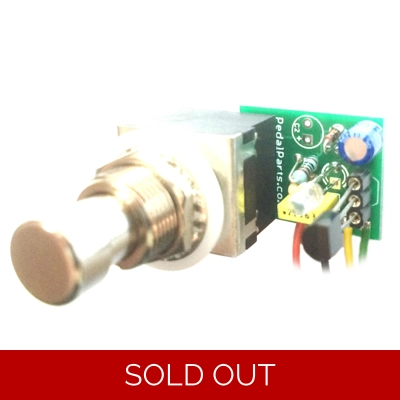

The circuit can be mounted on a footswitch or a SPDT toggle switch, neither of which are supplied with the kit. See the Switches section if you want one.

Kit includes: PCB, all components, hook-up wire, LED.

Difficulty: Easy

PCB size: 23 x 19mm

Download INSTRUCTION PDF
