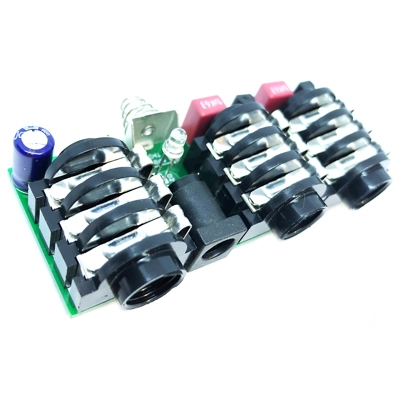

Spluffer - Buffered signal splitter - Board Mounted

Neat little circuit to split your guitar signal without any signal loss, based on the AMZ Splitter Buffer.

This version keeps everything neatly board mounted with no wiring, unless you opt for the wired DC socket.

Designed for a mini 1590A (36 x 90mm) enclosure with DC power only in horizontal format. If you go for the board-mounted DC socket be aware you may have a small gap between the socket and the enclosure. The hole needs to be big enough to get your DC plug into without risk of shorting on the metal. If you want it 'watertight' you'll need to wire up a DC socket.

Note: The pic shows a 100nf input cap. We'll be supplying the kits with 1uf for all the signal caps so the kit is suitable for signals with more bottom end.

Oops alert - requires a small hack to connect the grounding spring to the PCB. See doc for details.


Kit includes: PCB, DC socket, board mounted components, grounding spring and jack sockets.

Pre-drilled enclosure is optional, but MUST be included if you want to order a pre-built unit.

Inspired by: AMZ Splitter Buffer

Difficulty: Easy

PCB size: 73 x 30mm
