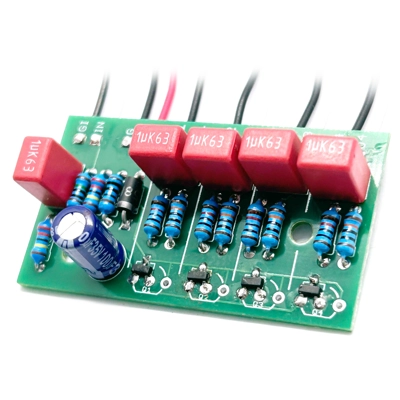

Spluffer - Buffered signal splitter

Neat little circuit to split your guitar signal without any signal loss, based on the AMZ Splitter Buffer.

Split into 2, 3 or 4 outputs.

There are pads for both through-hole (expensive, scarce), or SMT (plentiful and mucho cheap), so go for the latter if you're confident with soldering tiny parts.

No enclosure option for this one - there are limitless possible configurations, so work it out however fits your setup.

See link below for a super neat, all board mounted version if two outputs is enough for you.

Kit includes: PCB, DC socket, board mounted components. You'll need to order the jacks separately. See link below.

Inspired by: AMZ Splitter Buffer

Difficulty: Easy

PCB size: 50 x 25mm

Download the INSTRUCTION PDF
