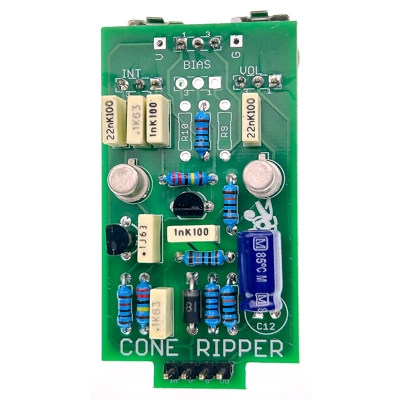

FuzzPup Cone Ripper

New

This is part of our FuzzPup range of circuits designed for 1590A builds. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

A different PCB is available for 'standard' 1590B builds - see the related products listed below.

NOTE: Images other than the main circuit are to illustrate general FuzzPup V2 build style

Nasty, noisy, uncompromising, signal-tearing gain.

There are several variations on the same circuit going by different names. You'll get the parts to make any of them, or you can get an approximation of three in one box by adding the Bias pot or a three-way toggle switch to flip between them. It's not 100% this way, as there are other small differences, but if you want a more versatile build it's a good option.

Versions are:

Cone Ripper - broken overdrive that sounds like you've got a ripped speaker in your cab.
Butt Flush Fuzz - Stupidly high gain fuzz fun - heavy as you like.
American Octave - tight, gated fuzz.
No Way Drive - Crazy high-gain fuzz with pronounced octave-up.

All of the above sound different enough to warrant having one of each on your board. Honestly!

Comes with a separate daughterboard to easily mount the pots to the main PCB.

Pots have round shafts so you'll need set-screw fitting knobs. Pot spacing is 18mm.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and daughterboard, jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Supplied with 9mm pots (round shaft)

Inspired by: Torn's Peaker / Aenima / US / Never Drive

Difficulty: Hard

PCB size: 30 x 55mm
