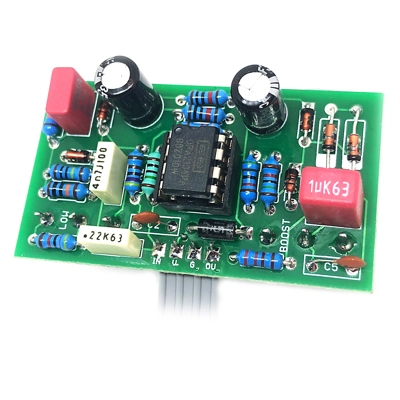

Deuterium Boost

Clean boost with mega amounts of headroom. Based around the lovely OP2134 op-amp, this is as clean as boosts get. But what's that LOW pot doing? It's adding so much bottom end you'll think your guitar has had ass implants.

The original has two independent boosts in one box, but we thought it would make more sense to make this a single stand-alone circuit. You could always build two.

There's the option to keep it clean, or grit things up a bit by swapping out a couple of diodes for germaniums.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosure and vertical-mount pots. Please choose appropriate knobs.

Inspired by: Heavy Water

Difficulty: Medium

PCB size: 50 x 28mm

Knobs required: 2

Enclosure: 1590B

Direct Connect compatible (4-way)

Download the INSTRUCTION PDF
