Chilly Biscuit Plus

From a mild boost to a big, fat distortion. This is a little box of antipodean boutique magic which proves you can have your cake and eat it.

Huge range of distortion available, and a presence control to give you some mid-range whallop.

This PLUS version adds the switches of the later model, offering extra low frequencies and a bluesy-fruit mode that smooths out the distortion a little.

We've added the option to go for MadBean's recommended mods to lower the gain and bass a tad.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

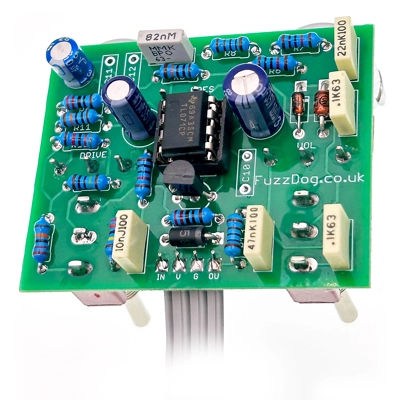

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Hot Cake

Difficulty: Medium

PCB size: 50 x 40mm

Knobs required: 3

Enclosure: 1590B

Direct-Connect compatible (4-way)

Download the INSTRUCTION PDF
