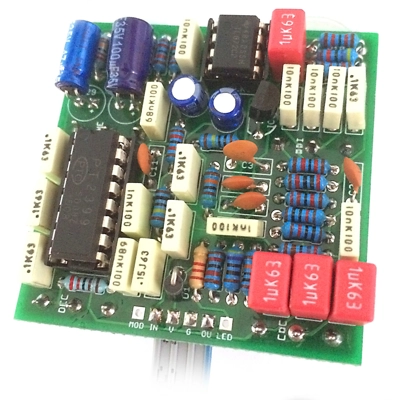

Analog-like Echo

Like its not-so-distant cousin, the Echo Blue Delay, this is a PT2399-based digital delay with an analog direct signal path. As such you'll get pretty much more of the same - a natural-sounding delay with the warmth of a vintage tape echo. First repeat is clean, subsequent repeats start to darken and degrade. A great alternative to more clinical devices - this has soul. After spending some time with this fella we're of the opinion this is a little cleaner and brighter than the EBD, and the addition of a Tone control gives you a few more sonic possibilities. Short slap-back is especially fun.

No FuzzDog dirt control on this one though, so if you want to get really messy with your repeats then the EBD is mos def still the way to go.

Delay time is between 25 - 600ms, and with a current draw of under 30mA you can have top notch groovy delay on the board without eating up too much juice.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

There's an extra pad on the board to enable easy incorporation of a modulation circuit, but you'll have to sort out your own favourite LFO for that.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosure and vertical-mount pots. Please choose appropriate knobs.

Inspired by: Faux Analog Echo

Difficulty: Medium

PCB size: 50 x 50mm

Knobs required: 4

Enclosure: 1590B

Direct-Connect compatible (4-way)

Download theINSTRUCTION PDF
