1590BB Drill Template

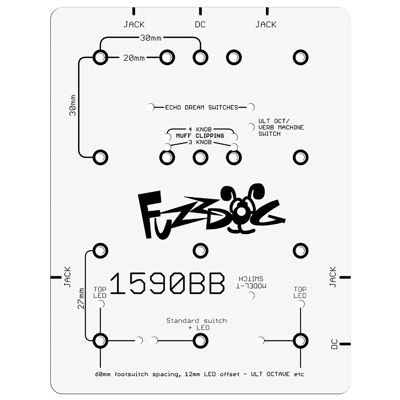

Drilling templates for most of our vertical format 1590BB circuits. 99% of all future vertical 1590BB will use these spacings.

Recommended for marking up the enclosure only, not for actually drilling through. The holes won't stay neat and sharp for long if you're hitting them with a pilot drill.

Not suitable for Gristleizer, Mutron, Bad Mofo or BrassMaster.

PCB size: 90 x 116mm

Download the INSTRUCTION PDF
