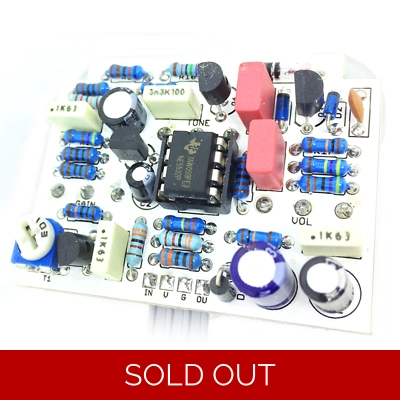

White Cliffs Drive

Now this IS an interesting circuit.

Sturdily straddling the normally fat line between overdrive and fuzz, this is a very versatile box.

Wind it back for fat rhythm, crank the gain for screeching leads. Chunky crunch to creamy sustain for days. Highly touch sensitive and responsive to your guitar controls.

Caution - this circuit is very fussy about impedance. Best after a buffer and careful bias tweaking.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Dover Drive

Difficulty: Medium

PCB size: 50 x 40mm

Knobs required: 3

Enclosure: 1590B

Direct Connect compatible (4 way)

Download the INSTRUCTION PDF
