Tight White Drive

A genuinely worthwhite boutique take on the DOD OD250 / MXR Distortion+

The best bits of both circuits have been tweaked to perfection in this bad boy. An additional 'Weight' control lets you filter out the bottom end or let it rip, making it tight and tasty or all-out frequency mayhem that will rattle your cab.

The toggle switch gives you two different clipping options (or compression if you're looking up the original).

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

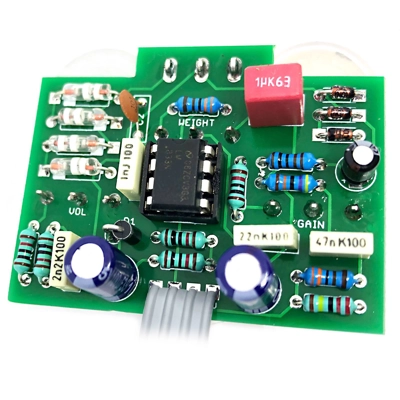

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and can take a battery if desired with footswitch positioned 22mm higher, closer to the controls. Knobs are not included.

Builds are only available with full kits including enclosure and vertical-mount pots. Please choose appropriate knobs.

Inspired by: White Light

Difficulty: Medium

PCB size: 50 x 40mm

Knobs required: 3

Enclosure: 1590B

Direct-Connect compatible (4-way)

Download the INSTRUCTION PDF
