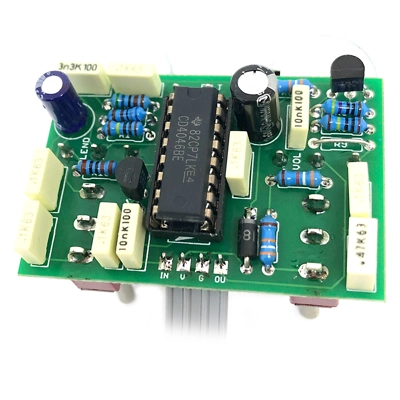

Sub Synth

Wonderfully glitchy octave-down fuzz.

Volume does what you think, Filter is kind of obvious, and Blend - well, that blends as much octave-down as you want into your fuzz.

Two switches to play with. One flips between one or two octaves down. The other is a footswitch on the original, but we've opted to make it a toggle. This turns the circuit into a random glitch monster that's a lot of fun.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosure and vertical-mount pots. Please choose appropriate knobs.

Inspired by: Octave Synth

Difficulty: Medium

PCB size: 50 x 33mm

Knobs required: 3

Enclosure: 1590B

Direct-Connect compatible (4-way)

Download the INSTRUCTION PDF
