Stabby

Delightfully versatile drive for a huge range of gains.

At low drive levels it'll make your signal a bit hairy, but that drive control goes up to 25, getting you into blown-out fuzzy tones at the top end.

The Baxandall EQ gives you control over which frequencies are pushing through and bothering your speaker, with a toggle to cut or boost the bottom end.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

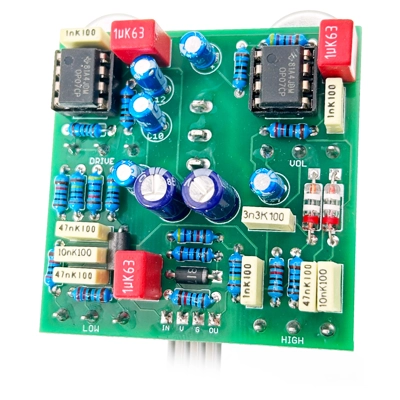

Partial kit: PCB, all board-mounted components (depending on selected options), pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is only available with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosure and vertical-mount pots. Please choose appropriate knobs.

Inspired by: EAE Dagger

Difficulty: Medium

PCB size: 50 x 50mm

Knobs required: 4

Enclosure: 1590B

Direct-Connect compatible (4-way)

Download the INSTRUCTION PDF
