SRS EQ Exciter

Fat, heavy fuzz from this hard to get vintage circuit.

Really nice tone control gives you a lot of tweakability.

The original is a simple two-knob affair, with the fuzz being set to full by a fixed resistor. We've added the option to include a fuzz pot, but to be honest this thing works best stock. All or nothing. Gung ho.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

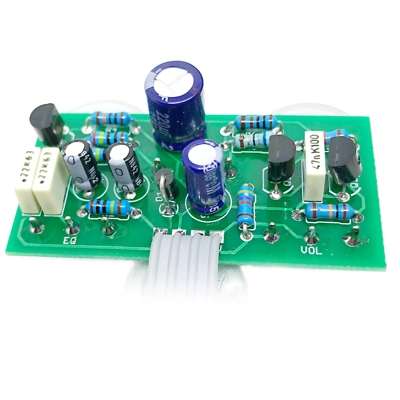

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and can take a battery if desired with footswitch positioned 22mm higher, closer to the controls. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: SRS EQ Exciter

Difficulty: Medium

PCB size: 50 x 25mm

Knobs required: 2, 3

Enclosure: 1590B

Direct Connect compatible (4 way)

Download the INSTRUCTION PDF
