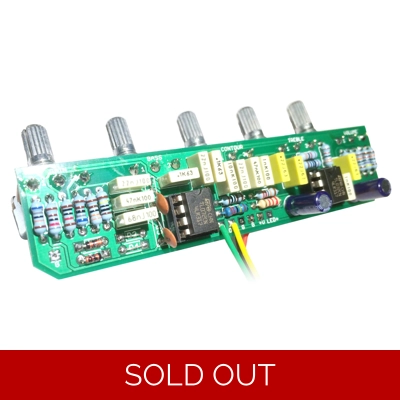

Shred Master
Big, fat, high-gain distortion with a great range of tones thanks to the Contour control. Get your chugga-chugga on with some mighty crunch.
Pot spacing is 21mm - take that into account when choosing your knobs.
Board-mounted pots for minimal wiring and easy enclosure mounting.
If you want the PCB without parts there's a link for that at the bottom of the page.
Partial kit: PCB, all board-mounted components, pots.
Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.
Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.
Builds are only available with full kits including enclosure. Please choose appropriate knobs.
Inspired by: Shredmaster
Difficulty: Medium
PCB size: 100 x 22mm
Knobs required: 5
Enclosure: 1590B
Download INSTRUCTION PDF
