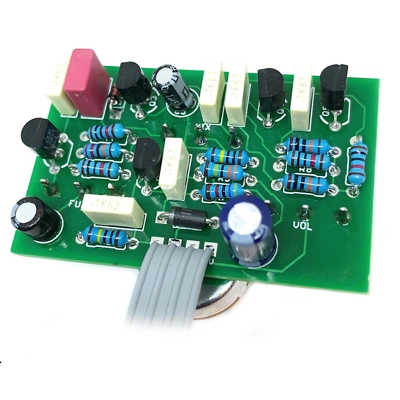

Shocktave Fuzz

Nice bit of octave-down fuzz fun from Joe Davisson.

A simple fuzz section feeds into a really clever bit of circuitry that produces an octave-down effect, which sounds a lot like a Blue Box. Remarkably good tracking for such a simple analog device. You can control how much of this is mixed into the fuzz and the result is very useable.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and can take a battery if desired with footswitch positioned 22mm higher, closer to the controls. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Shocktave

Difficulty: Easy

PCB size: 50 x 30mm

Knobs required: 3

Enclosure: 1590B

Direct Connect compatible (4 way)

Download the INSTRUCTION PDF
