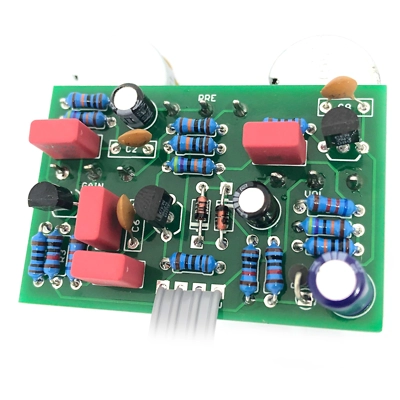

Revelator Fuzz

Yet another variation on the Big Muff Pi theme, and it's worthwhile.

The second clipping stage has been dispensed with, giving a crunchier, open tone compared to the compressed BMP fuzzing.

Also missing is the tone section, so that gorgeous growl is unhindered on it's way to wreck your speakers. Pure filth.

Available in two flavours:

• Super bass - which is beefy and bad-ass, perfect for drop-tune, baritone and bass, but also interesting on standard guitar if you want growly grunt
• Super lead - which is tighter than the above with more gain on tap. If you want more focussed fuzzing, this is for you.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Revelation SuperLead / SuperBass

Difficulty: Medium

PCB size: 50 x 32mm

Knobs required: 3

Enclosure: 1590B

Direct-Connect compatible (4-way)

Download the INSTRUCTION PDF
