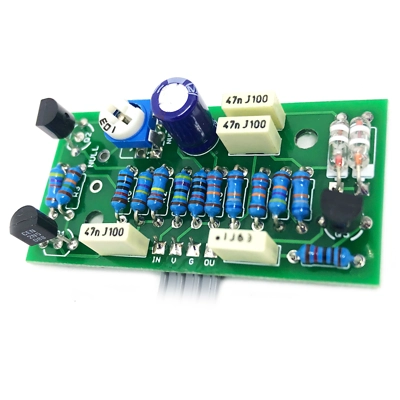

Green Ringer - Octave UP!
Our version of the Dan Armstrong Green Ringer, an octave-up circuit which can be used to great effect when combined with fuzz.
We've included spots for a trimmer or pot for the variable 'nulling' mod. What's that? Read up here.
Supplied with silicon 1N4148 diodes as standard, but you can add optional matched germanium diodes (Russian D9K) if you want to.
In stock form this pedal has no external controls other than the bypass switch. If you aren't going for the Null pot you'll need something to mount the PCB within the enclosure. We supply self adhesive mounts.
If you want the PCB without parts there's a link for that at the bottom of the page.
Partial kit: PCB, all board-mounted components, pots.
Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.
Enclosure (pre-drilled) is available as an option with full kits, and can take a battery if desired with footswitch positioned 22mm higher, closer to the controls. Knobs are not included.
Builds are only available with full kits including enclosure and vertical-mount pots. Please choose appropriate knobs.
Inspired by: Green Ringer
Difficulty: Easy
PCB size: 50 x 26mm
Knobs required: 0 / 1
Enclosure: 1590B
Direct-Connect compatible (4-way)
Download the INSTRUCTION PDF
GreenSt
Pedal Parts
130.0g
New
