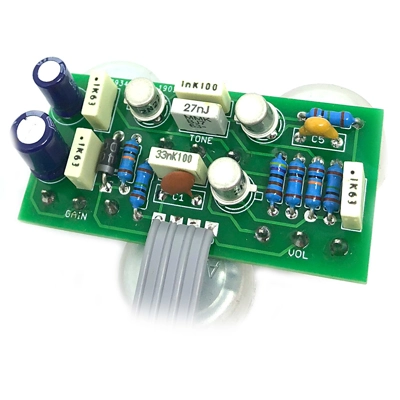

Goliath Space Fuzz

Holy moons of Saturn, FuzzMan! This is some nice silicon fuzzy goodness.

A trio of 2N2222 spitting out a range of fizz from low-gain, almost overdrive territory right up to brutal splatter, all beautifully tweakable with a sweet tone control.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and can take a battery if desired with footswitch positioned 22mm higher, closer to the controls. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Titan II

Difficulty: Easy

PCB size: 50 x 24mm

Knobs required: 3

Enclosure: 1590B

Direct Connect compatible (4 way)

Download the INSTRUCTION PDF
