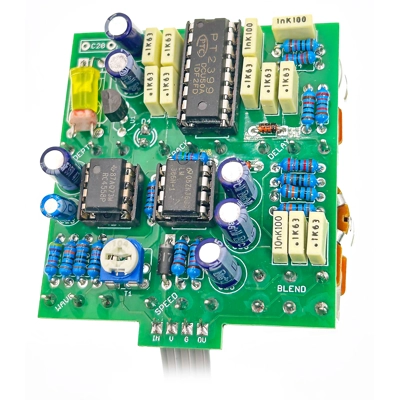

Frequency Freebooter

Aaaaaaarrrrr delay fans. This one 'ere 'as a feel of life on the ocean waves.

PT2399-based delay with some deluxe options to modulate to suit your mood.

Controls are:

• Delay - Feedback - Depth - Speed - Blend - Wave - which should all be pretty obvious.

Optional modulation rate indicator LED.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs. We recommend 1900H knobs as the pot spacing is a tight 17.5mm.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Deluxe Pitch Pirate

Difficulty: Medium-Hard

PCB size: 50 x 57mm

Knobs required: 6 (Small!)

Enclosure: 1590B

Direct Connect compatible (4 way)

Download the INSTRUCTION PDF
