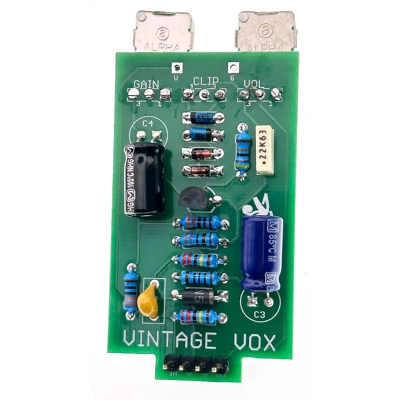

FuzzPup Vintage Vox

New

This is part of our FuzzPup range of circuits designed for 1590A builds. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

A different PCB is available for 'standard' 1590B builds - see the related products listed below.

NOTE: Images other than the main circuit are to illustrate general FuzzPup V2 build style

The last thing anyone wants is to fry their beloved vintage AC15 or AC30, but how else are you going to get that incredible tone of those great British beasts being pushed to the edge? Stick one of these beauties in your chain. It does a great job of capturing the essence of those particularly distinguished English gents on the edge of a nervous breakdown.

Nice and simple Vol and Gain controls, along with a three way toggle giving three different levels of amp failure.

Comes with a separate daughterboard to easily mount the pots to the main PCB.

Pots have round shafts so you'll need set-screw fitting knobs. Pot spacing is 18mm.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and daughterboard, jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Supplied with 9mm pots (round shaft)

Inspired by: LovePedal Englishman

Difficulty: Hard

PCB size: 30 x 55mm
