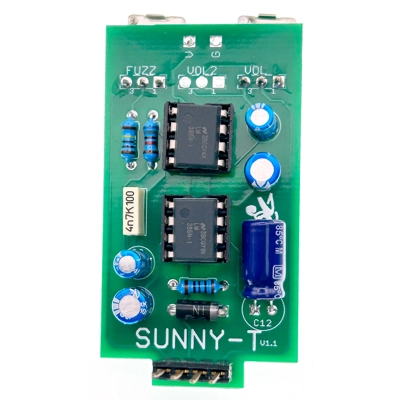

FuzzPup Sunny-T

New

This is part of our FuzzPup range of circuits designed for 1590A builds. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

A different PCB is available for 'standard' 1590B builds - see the related products listed below.

NOTE: Images other than the main circuit are to illustrate general FuzzPup V2 build style

Who wouldn't like a Sunn Model T in their set-up? Bet you can't name one person. If you can, unfriend them immediately as they have no taste. No sir.

Well, truth is you're probably not getting one any time soon, so have yourself a little box of dirt to get you in the mood.

Now, we can't vouch for how close this gets to that elusive tone, but this power amp-based distorting doohicky sounds real good, and is a lot more versatile than you might expect from a one-knob-job (yes - you can have the kit with two knobs if you prefer - we just like the term 'one knob job'). Your guitar volume control is your friend here, and the Sunny-T will respond nicely to some twiddling, from low-gain dirty grit to all-out 'please turn it down!' speaker melt.

Keep it simple with volume control only, or add a a gain control to the circuit input, which will act just like your guitar volume.

Comes with a separate daughterboard to easily mount the pots to the main PCB.

Pots have round shafts so you'll need set-screw fitting knobs. Pot spacing is 18mm.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and daughterboard, jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Supplied with 9mm pots (round shaft)

Inspired by: Acapulco Gold

Difficulty: Hard

PCB size: 30 x 55mm
