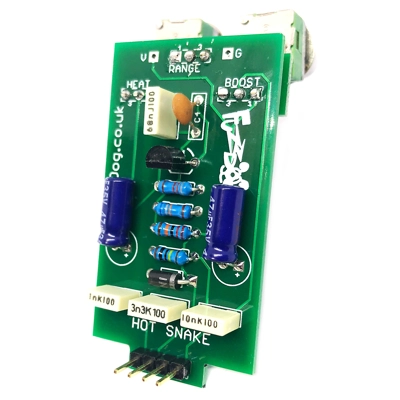

FuzzPup Hot Snake

This is part of our FuzzPup range of circuits designed for 1590A builds. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

A different PCB is available for 'standard' 1590B builds - see the related products listed below.

Nothing to do with snakes really, but it is hot and it does boost your signal nicely.

Three highly interactive controls give you endless tweakability, with anything from mild treble boost to powerful full-range push.

Comes with a separate daughterboard to easily mount the pots to the main PCB.

Pots have round shafts so you'll need set-screw fitting knobs. Pot spacing is 18mm.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and daughterboard, jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Supplied with 9mm pots (round shaft)

Inspired by: Naga Viper

Difficulty: Hard

PCB size: 30 x 55mm

Knobs required: 3

Enclosure: 1590A

Direct-Connect compatible (4-way)

Download the INSTRUCTION PDF

You'll also need V2 of the general FuzzPup doc
