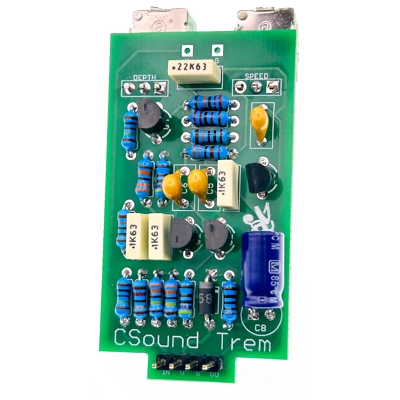

FuzzPup CS Trem

New

This is part of our FuzzPup range of circuits designed for 1590A builds. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

A different PCB is available for 'standard' 1590B builds - see the related products listed below.

NOTE: Images other than the main circuit are to illustrate general FuzzPup V2 build style

Another lovely wobble box, this time getting somewhere close to the throbbing goodness found on a vintage Vox amp.

Simple build using using modern, more available parts than the vintage original, but sounding exactly the same. Pot values and tapers have been tweaked for a much better range and sweep too.

Supposedly the favoured trem of Phil Manzanera, and used by Mr Bonnamassa (apparently), so what's not to love?

Comes with a separate daughterboard to easily mount the pots to the main PCB.

Pots have round shafts so you'll need set-screw fitting knobs. Pot spacing is 18mm.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and daughterboard, jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Supplied with 9mm pots (round shaft)

Inspired by: Colorsound Tremolo

Difficulty: Hard

PCB size: 30 x 55mm
