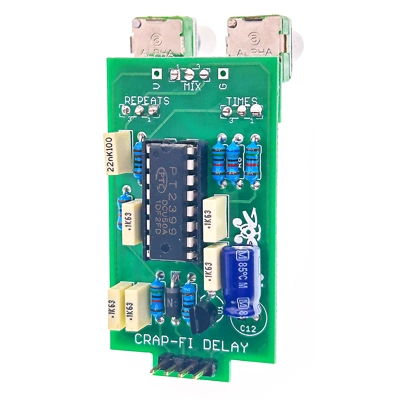

FuzzPup Crap-Fi Delay

This is part of our FuzzPup range of circuits designed for 1590A builds. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

A different PCB is available for 'standard' 1590B builds - see the related products listed below.

NOTE: Images other than the main circuit are to illustrate general FuzzPup V2 build style

A stripped-back PT2399 delay circuit by allesz at freestompboxes.

Despite the name, it's anything but crappy. Sure, it's lacking a bunch of filtering you'd find on bigger circuits, but if you're after some straight-up delay action with the charming eccentricities of the chip - go for it.

Comes with a separate daughterboard to easily mount the pots to the main PCB.

Pots have round shafts so you'll need set-screw fitting knobs. Pot spacing is 18mm.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and daughterboard, jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Supplied with 9mm pots (round shaft)

Inspired by: Allesz's Crap-Fi Delay

Difficulty: Hard

PCB size: 30 x 55mm

Knobs required: 3
