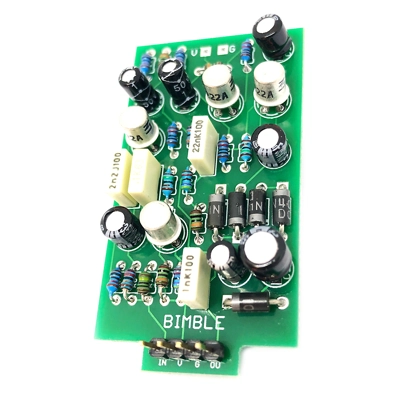

FuzzPup Bimble

This is part of our FuzzPup range of circuits designed for 1590A builds. They're not especially difficult, but working in a confined space can be fiddly. Take heed.

Of course there's nothing stopping you using these PCBs for 'standard' builds. They're Direct Connect compatible.

A different PCB is available for 'standard' 1590B builds - see the related products listed below.

Ripping, nasty, angry buzzing fuzz tones with zero controls to tame the sonic sting.

Vintage psych style as heard on a bunch of Jack White recordings.

Zero pots. Nice.

Supplied with 3mm (0.125W) resistors.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and daughterboard, jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Supplied with 9mm pots (round shaft)

Inspired by: Bumble Buzz

Difficulty: Hard

PCB size: 30 x 55mm

Knobs required: Nada

Enclosure: 1590A

Direct-Connect compatible (4-way)

Download the INSTRUCTION PDF
