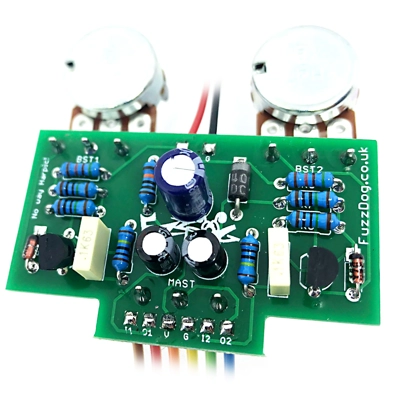

Double-Down Boner Boost Vertical

NOTE: Does not come with ribbon cable. We're out of stock on the 6-way for now.

Why settle for one Boner when you can have two? The Double-down Boner Boost gives you all the oomph of two Boner Boosts - alone or in series - with a master volume to keep things tamed if it all gets a bit too much.

Your signal sneaks in on the right. First up we have a standard Boner kicked in with the right footswitch. Nice boost man... Switch that off and kick in the left hand Boner with the left footswitch, followed by the master volume (middle knob). Nice boost with attenuation man... Now the fun really starts. Switch them both on. A Boner into a Boner can be all kinds of awesome, from just a bit of boost to screaming drive.

All this fits into a 1590B size box in a vertical orientation, making it economical on board space. Of course the footswitches are very close together, so you'll have to be nimble with your toes. The advantage of that is you can switch both at once with one deft stomp.

Footswitches and LEDs mount on a separate daughterboard

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components (not footswitches), pots.

Full kit: As above, plus footswitch and appropriate daughterboards/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosure. Please choose appropriate knobs.

Inspired by: Super Duper 2-in-1

Difficulty: Medium

PCB size: 50 x 30mm

Knobs required: 3

Enclosure: 1590B

If you want the kit pre-built you must add the enclosure option below and select your knobs in the Components section. Check Specials for powder-coated enclosure availability.

Download the INSTRUCTION PDF
