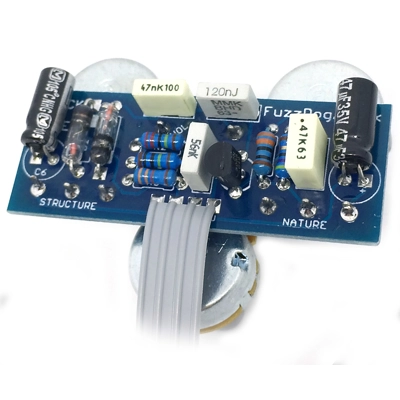

Clock of Tone
Based on a COT50™ boost/OD box, but with some handy mods by Fred Briggs over at Revolution Deux.
As well as the single bias control of the original, there is an additional Nature control to go from full boost to Range Master-ish world. Slightly softer clipping than the original, and caps altered to make it all a little thicker round the edges.
We've added an optional Master Volume.
The circuit will take you from clean boost to light overdrive, and can crank enough juice out to really push an amp into new territory. Highly pick-responsive. A great addition to any set up.
The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.
If you want the PCB without parts there's a link for that at the bottom of the page.
Partial kit: PCB, all board-mounted components, pots.
Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.
Enclosure (pre-drilled) is available as an option with full kits, and can take a battery if desired with footswitch positioned 22mm higher, closer to the controls. Knobs are not included.
Builds are only available with full kits including enclosures. Please choose appropriate knobs.
Inspired by: Clock of Tone
Difficulty: Easy
PCB size: 50 x 20mm
Knobs required: 2, 3
Enclosure: 1590B
Download INSTRUCTION PDF
