BeatleVox

Love them, hate them, or roll your eyes with utter indifference - The Beatles kicked out some fantastic tone. Here's a little box of fuzz that will get you near to the lead tones from Revolver and Sgt Peppers.

Based on the distortion (a fuzz really, but hey....) circuit in the Vox™ UL730 amp, this thing rips. An added bias control lets you tweak around with it as some units were biased differently to others, and it makes a big difference to the tone.

Because we care we've sourced some of the obsolete OA200 diodes used in the original amps and the pedal recreation. How cool is that? We can only assume the limited run of the pedal is down to the lack of these parts.

If you want the PCB without parts there's a link for that at the bottom of the page.

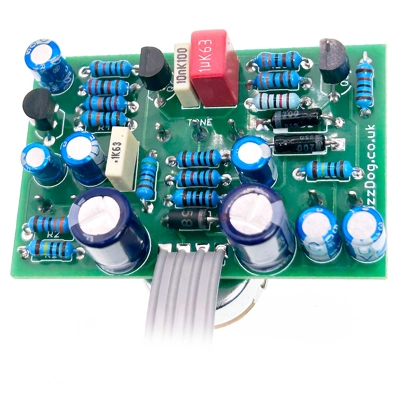

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Vox UL730 Distortion / Aclam The Mocker

Difficulty: Easy

PCB size: 50 x 33mm

Knobs required: 3

Enclosure: 1590B

Direct Connect compatible (4 way)

Download INSTRUCTION PDF
