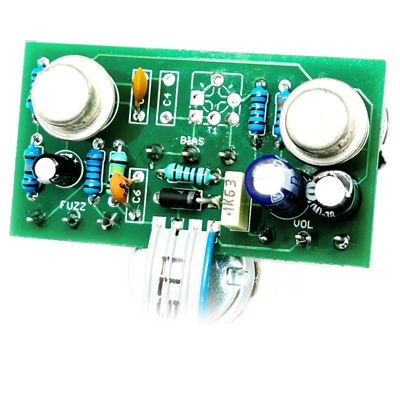

Annihilator Fuzz

Earth-shattering fuzz. The doom is strong with this one.

Basic Fuzz Face topology with an added twist of horror. There's just something about those low-gain Russian transistors that makes this fella special.

You can keep it stock and bias it to perfection with an internal trimmer, or add a little FuzzDog magic with an external Bias pot. This will give you a range of textures that'll keep you pleased 'til judgement day.

Peak performance is achieved with this first in your chain without a buffer.

Supplied with board-mounted pots with round shafts, so you'll need set-screw fitting knobs).

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is only available with full kits, and will take a battery if desired, with the footswitch positioned 22mm closer to the pots.. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Dream Crusher

Difficulty: Medium

PCB size: 50 x 27mm

Knobs required: 2 / 3

Enclosure: 1590B

Direct Connect compatible (4 way)

Download the INSTRUCTION PDF
