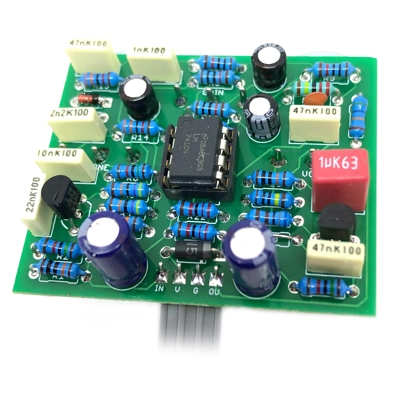

AF-60

Recreation of the late 70's filthy awesomeness of the Roland AF-60 Bee Gee©, itself the Jet mode of the AP-7 Jet Phaser.

This is pretty brutal in stock form, which is exactly where it should be. Full-on fizz with a massive range on the tone control.

If you just can't take the heat you have the option of a gain pot to tone it down. We WILL grass you up to the fuzz police if you go for this. You have been warned.

For fans of Stooges or early Mudhoney skuzz.

The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and will not take a battery. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: Roland AF-60 Bee Gee

Difficulty: Easy

PCB size: 50 x 41mm

Knobs required: 2 / 33

Enclosure: 1590B

Direct Connect compatible (4 way)

Download the INSTRUCTION PDF
