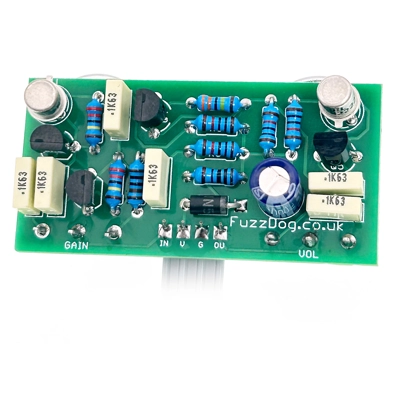

8-Bit Legend

Another gloriously horrible fuzz offering from the queen of extreme.

This time we have glitchy ripping tones that can be spluttery and almost not there to full-on, totally dependent on the input level.

Keep it low (with your guitar vol or the gain pot) and you have to really hit the strings to get any semblence of signal coming out, which can make for awesome percussive textures. Wind it up as you like to get constant, more conventional circuit output, ripping and snarling it's way to the amp.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and can take a battery if desired with footswitch positioned 22mm higher, closer to the controls. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: BIT: Legend of Fuzz

Difficulty: Easy

PCB size: 50 x 25mm

Knobs required: 2

Enclosure: 1590B

Direct Connect compatible (4-way)

Download the INSTRUCTION PDF
