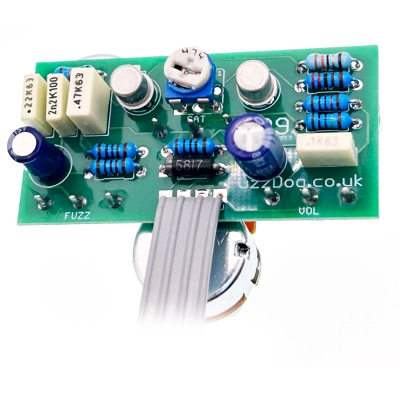

109 Fuzz

Yet another Fuzz Face, but oh my... you know it's going to do the thang when this guy is at the design helm.

Tweaked to give you crushing heavy fuzz at full saturation, or nicey nicey with it wound back. Everything in between is super sweet. Could this be the three-knob Fuzz Face to rule them all?

We think so.

Board-mounted pots for minimal wiring and easy enclosure mounting.

If you want the PCB without parts there's a link for that at the bottom of the page.

Partial kit: PCB, all board-mounted components, pots.

Full kit: As above, plus footswitch and appropriate daughterboard/components for your selected bypass type (see Downloads section for details of those), jack sockets, DC socket, battery snap, hook-up wire, LED.

Enclosure (pre-drilled) is available as an option with full kits, and can take a battery if desired with footswitch positioned 22mm higher, closer to the controls. Knobs are not included.

Builds are only available with full kits including enclosures. Please choose appropriate knobs.

Inspired by: BJFE 109 Fuzz

Difficulty: Easy

PCB size: 50 x 25mm

Knobs required: 3

Enclosure: 1590B

Direct Connect compatible (4-way)

Download theINSTRUCTION PDF
